High‑Throughput Salt Tumbler Screen – Continuous Screening Unit for Salt Production Lines



Salt production is characterised by large‑scale operations. Large salt works process hundreds or even thousands of tonnes of raw salt daily. If screening equipment becomes a capacity bottleneck, the efficiency of the entire production line is constrained. In large‑scale salt production, the processing capacity of the screening stage directly determines the maximum output of the entire production line. Whether for sea salt coarse processing, refined salt fine grading, or large‑volume industrial salt screening, throughput is always one of the core indicators in equipment selection.

Modern salt production lines typically operate continuously. The processing capacity of screening equipment must match upstream crystallisation and drying processes as well as downstream packaging and storage. Insufficient equipment capacity directly causes material accumulation and line slowdown. Salt production usually runs 24/7 – equipment must operate stably for extended periods with low failure rates and long maintenance intervals. High throughput should not come at the expense of screening accuracy – the equipment must maintain separation precision for each particle size grade while achieving high throughput. Furthermore, sea salt, lake salt, and rock salt have different physical characteristics – screening equipment must have good material adaptability.

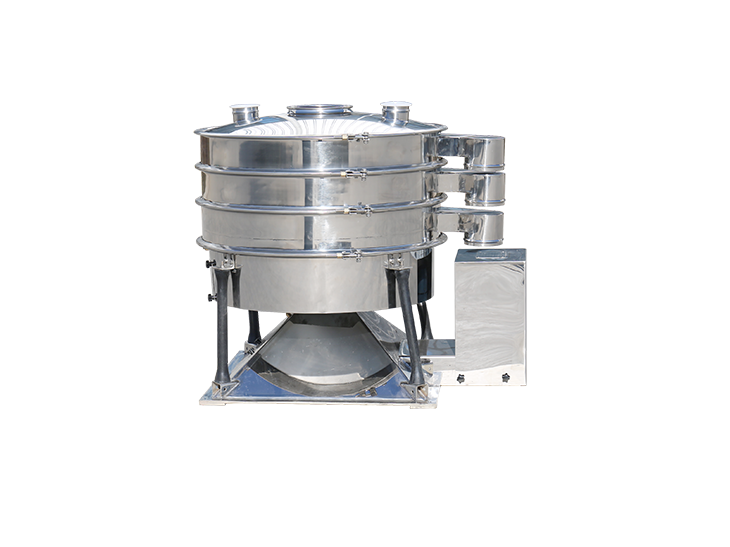

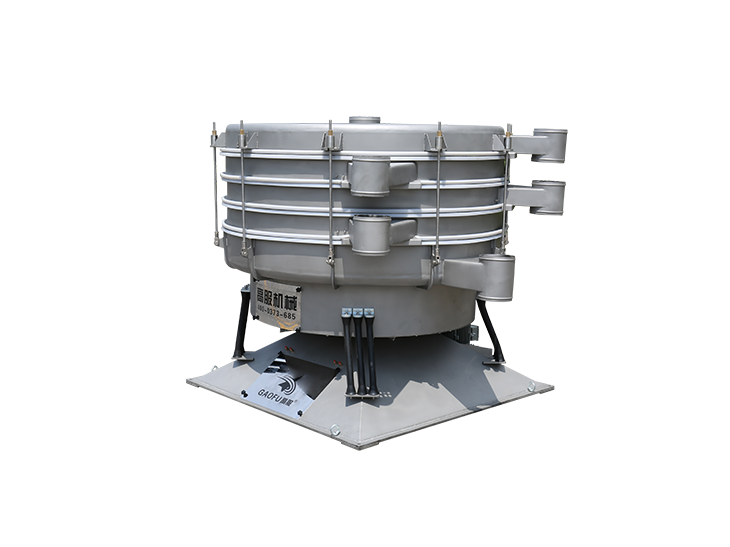

Gaofu Machinery's high‑throughput salt tumbler screen is a supporting unit developed specifically for continuous screening needs in salt production lines. It inherits the technical advantages of the tumbler screen – hand‑screening mimicking and low breakage rate – while achieving single‑machine high‑throughput continuous screening through large screening area, multi‑deck screen configuration, and efficient drive system.

The high‑throughput capability of the high‑throughput salt tumbler screen comes from the following technical design features:

Large screening area provides the physical foundation for high throughput. The tumbler screen's screening area is significantly larger than conventional vibrating screens of the same specification. A larger screening area means material has more space for dispersion and more opportunities to pass through the screen. With the same throughput per unit area, a larger screening area directly translates to higher total throughput. In screening granular materials such as salt and sugar, a single tumbler screen can meet the capacity requirements of large salt production lines.

Multi‑deck screen configuration completes grading and impurity removal simultaneously. Gaofu's high‑throughput salt tumbler screen supports flexible configurations of 1 to 5 screen decks, enabling simultaneous separation of multiple particle size grades in a single feed. This design reduces material transfer between multiple machines, shortens overall processing time, and increases effective output per unit time.

Efficient screening mechanism delivers clear advantage in throughput per unit area. The tumbler screen's hand‑screening mimicking principle causes material to move in a spiral involute path on the screen surface, providing a long screening path and high screen utilisation. Compared with conventional screening equipment such as rotary vibrating screens and linear screens, the tumbler screen can achieve up to 5 times the throughput per unit area. This means with the same screen area, the tumbler screen's processing capacity far exceeds that of conventional equipment.

Low‑speed operation with reasonable energy consumption. Unlike high‑speed vibrating conventional screens, the tumbler screen operates at low speed (120‑360 rpm). Low‑speed operation not only reduces impact on material but also lowers equipment energy consumption. While achieving high throughput, the equipment's operating costs remain at a reasonable level.

For salt production lines, "high throughput" and "continuous operation" are two inseparable requirements. Gaofu's high‑throughput salt tumbler screen provides multiple assurances for continuous operation:

Stable operation with low failure rate. The tumbler screen has a relatively simple structure with fewer moving parts and no fatigue damage risk from high‑frequency vibration. The equipment can run continuously for extended periods, reducing production interruptions caused by equipment failure.

Long screen life reduces screen change downtime. Because material rolls rather than slides on the screen surface, screen wear is concentrated on the tops of wire intersections rather than side‑cutting forces. The tumbler screen's screen life is 5‑10 times that of conventional circular screens. Longer screen life means fewer screen change stoppages and higher equipment utilisation.

Automatic impurity discharge eliminates manual intervention. During screening, impurities and oversize material are automatically discharged from the reject outlet without frequent manual cleaning. Operators can focus on production monitoring rather than equipment maintenance.

Enclosed structure improves workshop environment. The equipment features a fully enclosed structure, preventing dust emission during operation. For salt production, this not only improves the workshop environment but also reduces material loss.

Additionally, Gaofu's high‑throughput salt tumbler screen offers high screening accuracy, reaching over 95%. By controlling material movement trajectory and residence time on the screen surface, the material's motion path within the limited space becomes a non‑linear curve with varying speed and acceleration. Material has more contact opportunities with the screen surface, increasing pass‑through rate. Discharge ports can be rotated 360° around the axis for flexible equipment layout.

Gaofu's high‑throughput salt tumbler screen is suitable for the following salt production scenarios – coarse screening, fine screening, and multi‑stage grading in sea salt processing plants; large‑volume continuous screening in refined salt production lines; large‑scale screening in industrial salt production workshops; and screening pre‑treatment for salt chemical raw materials. With its technical foundation of large screening area, multi‑deck screen configuration, efficient screening mechanism, and low‑speed stable operation, it provides salt producers with a continuous screening unit from single machine to complete line.
