Food raw material grading screening typically involves the following scenarios:
Different raw materials require different mesh sizes. Granular materials such as white sugar and salt are usually screened at 20‑80 mesh; powdered materials such as flour and starch are typically screened at 80‑200 mesh; ultra‑fine powders such as milk powder and protein powder may require 200 mesh or even up to 400 mesh. A single machine needs to accommodate different mesh requirements.
The same raw material often requires multi‑stage classification. Many food raw materials need to be separated into different grades during production – coarse, medium, and fine fractions each correspond to different applications. The equipment must have multi‑stage grading capability to separate multiple particle fractions in a single feed.
Frequent product changeovers demand quick screen changes. Food processors typically handle multiple product varieties, so the equipment must support rapid screen changes to minimise downtime during changeovers.

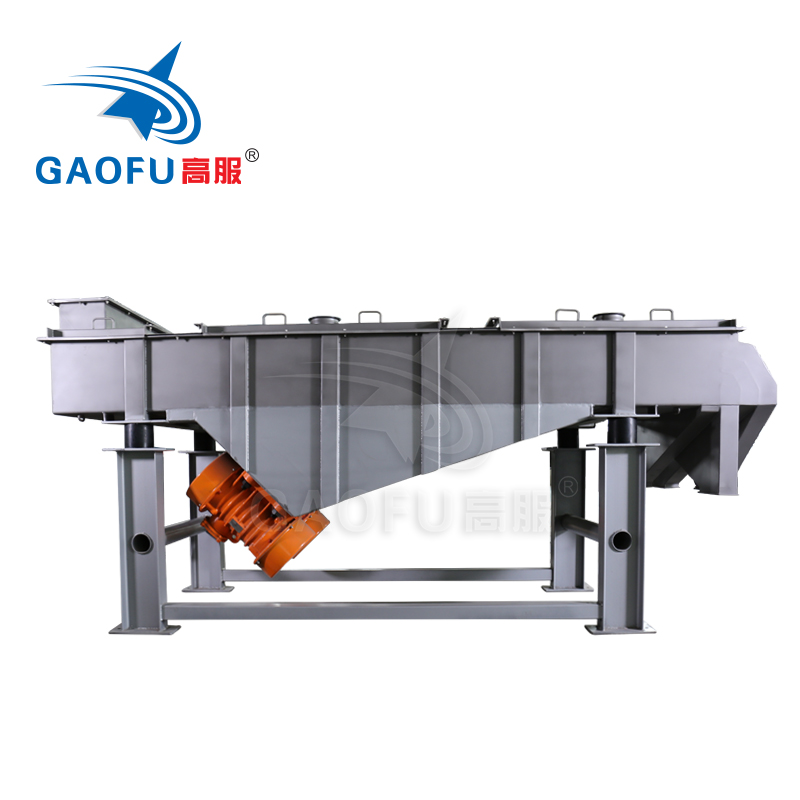

Gaofu's SZF series linear vibrating screen uses dual vibrating motors operating in synchronised opposite directions. When the two motors mounted longitudinally on the screen body run in opposite directions, the lateral excitation forces cancel each other out, while the longitudinal forces are transmitted through the vibration‑transmitting body to the entire screen box, generating linear vibration on the screen surface.

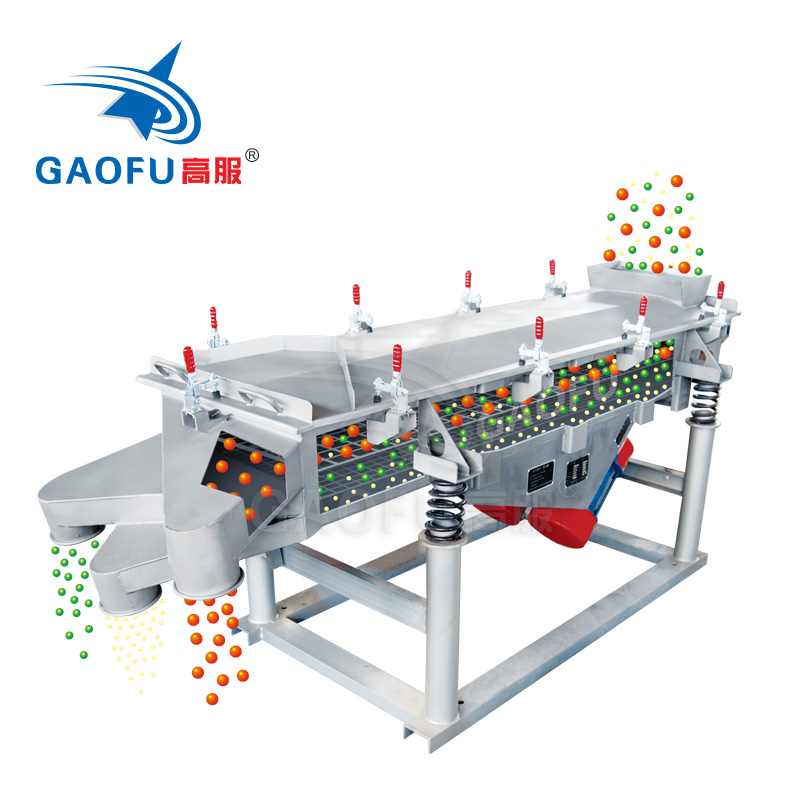

Under the combined action of excitation force and gravity, material is thrown up on the screen surface and moves forward in a straight line in a bouncing motion. Particles smaller than the screen openings pass through to the lower layer, while oversize material travels along the screen surface to the outlet, completing the grading operation.
The "multi‑layer screen configuration" of Gaofu's SZF series food raw materials linear vibrating screen is the key differentiator from single‑deck screening equipment:
1. 1‑5 screen decks for simultaneous multi‑stage grading
The equipment supports flexible configurations of 1 to 5 screen decks, enabling a single machine to produce 2 to 6 different particle size fractions at once. Screens are arranged from coarse to fine – material passes through each deck sequentially, with coarse particles retained on the upper decks and fines passing through the lower decks. This design allows a single machine to accomplish what would otherwise require multiple units.
For food raw material processing, the upper deck intercepts large impurities and lumps, the middle decks achieve different particle size fractions, and the lower deck removes ultra‑fine powder – one machine, multiple functions, reducing material transfers between units and minimising cross‑contamination risks.
2. Wide mesh coverage for different materials
Gaofu's linear vibrating screen covers a screening particle size range of 0.074 mm to 5 mm , with mesh openings customisable according to actual requirements. From coarse granular sugar (around 20 mesh) to ultra‑fine milk powder (above 200 mesh), suitable screen configurations are available. Screening efficiency reaches over 95% , with uniform output particles and effective prevention of size mixing.
3. Quick screen changes for multi‑product production
Food processors often need to switch frequently between different product varieties. Gaofu's linear vibrating screen features a modular screen design for easy and rapid screen changes. This allows the equipment to quickly adapt to different material mesh requirements, significantly reducing downtime during product changeovers.
4. Adjustable angle to suit different material characteristics
The equipment features an adjustable excitation angle – the screen surface inclination can be adjusted according to material characteristics and grading requirements. For free‑flowing granular materials, the angle can be increased to raise throughput; for materials with high fines content, the angle can be decreased to extend the screening path and improve grading accuracy.
The main technical parameters of Gaofu's SZF series food raw materials linear vibrating screen are as follows (actual values depend on the specific model and configuration):
| Parameter | Range / Specification |
| Models available | SZF‑520 to SZF‑1540 |
| Screen size | 500×2000mm to 1500×4000mm |
| Number of screen decks | 1‑5 |
| Screening particle size | 0.074‑5mm |
| Grading efficiency | Over 95% |
| Throughput | 15‑500 t/h |
| Installed power | 0.4‑30 kW |
| Screen mesh material | Carbon steel, stainless steel (304/316L optional) |
Note: The above values are for reference. Actual throughput depends on material characteristics, screen mesh size, and other factors. Pre‑purchase evaluation with your own material and operating conditions is recommended.
Gaofu's SZF series food raw materials linear vibrating screen is suitable for grading and impurity removal of various food raw materials, including but not limited to:
Cereal flours: wheat flour, rice flour, corn flour, oat flour, etc.
Starches: corn starch, potato starch, tapioca starch, etc.
Sugars: white sugar, soft sugar, icing sugar, dextrose powder, etc.
Dairy products: milk powder, whey powder, protein powder, etc.
Seasonings: monosodium glutamate (MSG), chicken powder, pepper powder, chilli powder, etc.
Food additives: thickeners, emulsifiers, preservatives, etc.
